Złączki hydrauliczne JIC
Złączka JIC, znana również jako złączka Joint Industry Council, to rodzaj gwintu powszechnie stosowanego w układach hydraulicznych i napędowych. Jest to znormalizowany gwint o kącie rozwarcia 37 stopni, powszechnie ceniony za niezawodność i łatwość montażu.
OPIS
Produkt ten to złączka JIC (lub Joint Industry Council), oba końce posiadają gwint JIC. JIC jest zdefiniowany przez normy SAE J514 i MIL-DTL-18866. Jest to rodzaj złączki kielichowej obrabianej maszynowo z powierzchnią przylegania kielicha o kącie 37 stopni.
Są powszechnie stosowane i produkowane z mosiądzu, stali węglowej i stali nierdzewnej. Złączki hydrauliczne JIC są powszechnie stosowane w większości układów hydraulicznych. Gwinty JIC dzielą się również na męskie i żeńskie z nakrętką obrotową.
JIC można w szerokim zakresie dopasować do różnych gwintów, takich jak:

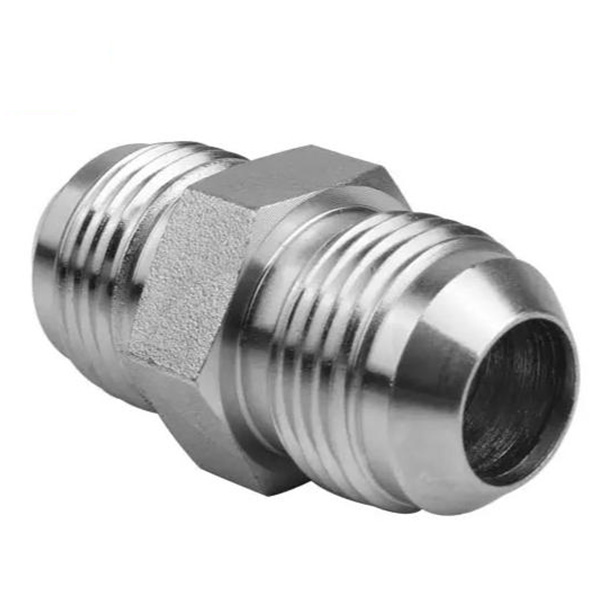

Adaptery hydrauliczne JIC do JIC /1J
Adaptery hydrauliczne JIC do ORB (pierścień uszczelniający)/1JO

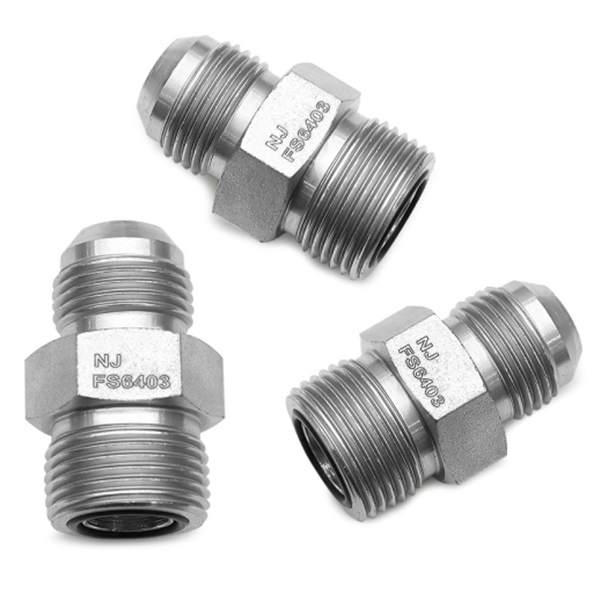

Adaptery hydrauliczne JIC do ORFS (uszczelnienie czołowe typu O-ring)/1JF

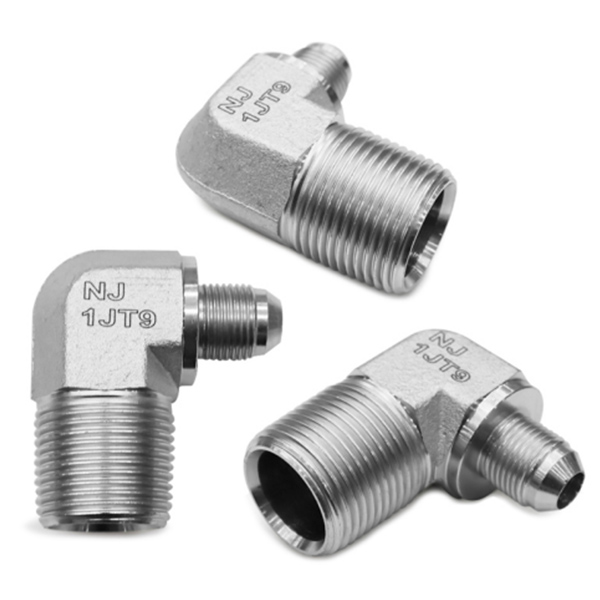

Adaptery hydrauliczne JIC do kolan NPTF 90 stopni/1JN9

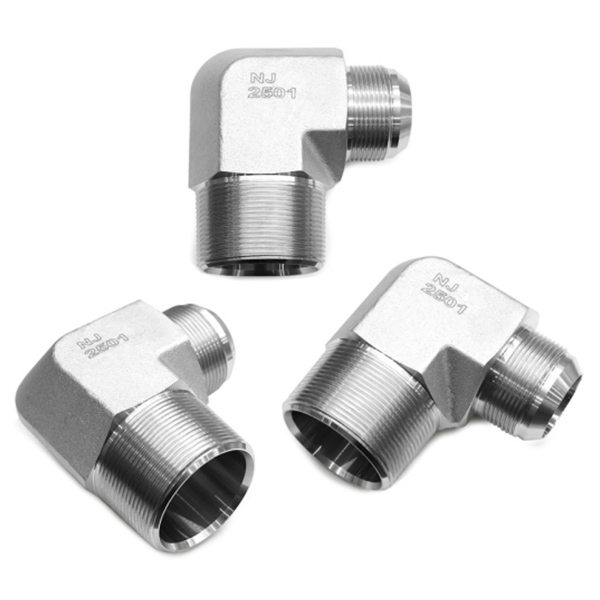

Adaptery hydrauliczne JIC do kolan BSPT 90 stopni/1JT9

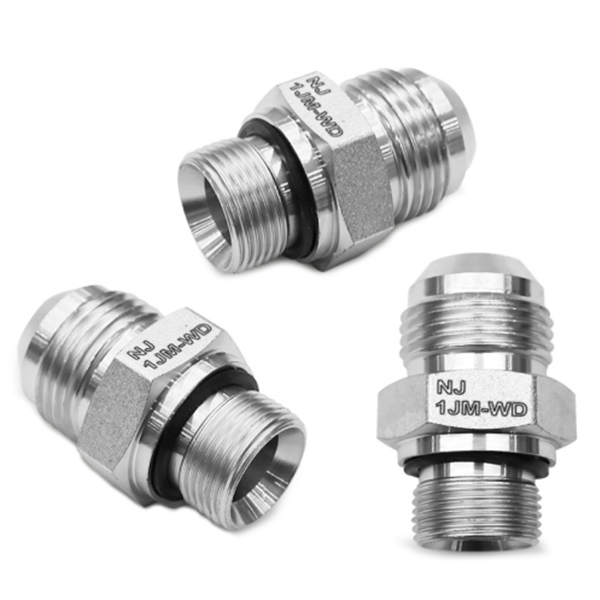

Adaptery hydrauliczne JIC do metrycznych/1JM

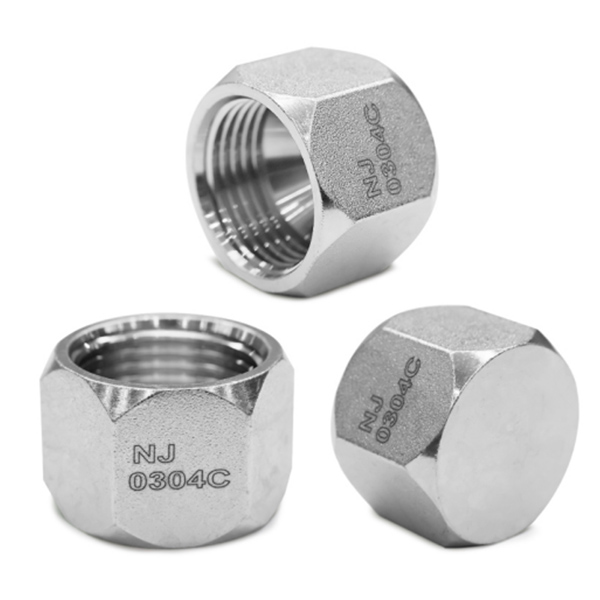

Kondensatory JIC /0304C
Wtyczki JIC/2408

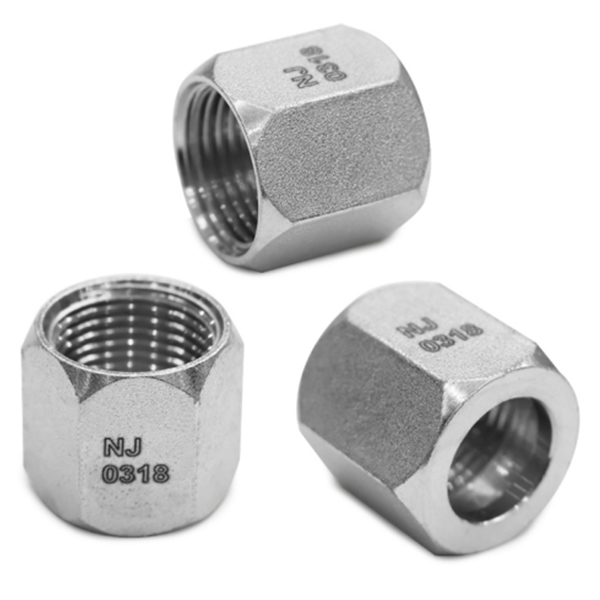

Nakrętka rury JIC/0318
Tuleja rurowa JIC/0319Dane techniczne
1. Adaptery hydrauliczne JIC do JIC /1J
| A | B | Część nr | L | E | F | H1 | ||
| myślnik | JIC | myślnik | JIC | mm | mm | mm | mm | |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1J-0606 | 31 | 12 | 12 | 11.1 |
| -7 | 7 / 16-20 | -7 | 7/-16-20 | 1J-0707 | 35 | 14 | 14 | 12.7 |
| -8 | 2001-2-20 | -7 | 7/-16-20 | 1J-0807 | 35 | 14 | 14 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1J-0808 | 35 | 14 | 14 | 14.3 |
| -9 | 9 / 16-18 | -9 | 7 / 16-20 | 1J-0907 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1J-0908 | 35 | 14 | 14 | 15.9 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1J-0909 | 36 | 14 | 14 | 15.9 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1J-1207 | 38 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1J-1209 | 39 | 17 | 14 | 20.6 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1J-1212 | 41 | 17 | 17 | 20.6 |
| -14 | 2007-8-14 | -7 | 7/-16-20 | 1J-1407 | 43 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -8 | 1 / 2-20 | 1J-1408 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1J-1409 | 42 | 19 | 14 | 23.8 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1J-1412 | 45 | 19 | 17 | 23.8 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1J-1414 | 48 | 19 | 19 | 23.8 |
| -17 | 1.1 / 16-12 | -7 | 7 / 16-20 | 1J-1707 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1J-1709 | 47 | 22 | 14 | 28.6 |
| -17 | 1.1 / 16-12 | -12 | 7 / 16-20 | 1J-1712 | 50 | 22 | 17 | 28.6 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1J-1714 | 52 | 22 | 19 | 28.6 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1J-1717 | 55 | 22 | 22 | 28.6 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1J-1917 | 55 | 23 | 22 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1J-1919 | 56 | 23 | 23 | 31.8 |
| -21 | 1.5 / 16-12 | -7 | 7 / 16-20 | 1J-2107 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -9 | 9 / 16-18 | 1J-2109 | 48 | 23 | 14 | 34.9 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1J-2112 | 51 | 23 | 17 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1J-2114 | 53 | 23 | 19 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1J-2117 | 56 | 23 | 22 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1J-2121 | 57 | 23 | 23 | 34.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1J-2617 | 59 | 24 | 22 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1J-2621 | 61 | 24 | 23 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1J-2626 | 62 | 24 | 24 | 42.9 |
| -30 | 1.7 / 8-12 | -17 | 1.1 / 16-12 | 1J-3017 | 64 | 28 | 22 | 50.8 |
| -30 | 1.7 / 8-12 | -21 | 1.5 / 16-12 | 1J-3021 | 66 | 28 | 23 | 50.8 |
| -30 | 1.7 / 8-12 | -26 | 1.5 / 8-12 | 1J-3026 | 67 | 28 | 24 | 50.8 |
| -30 | 1.7 / 8-12 | -30 | 1.7 / 8-12 | 1J-3030 | 70 | 28 | 28 | 50.8 |
| -40 | 2.1 / 2-12 | -21 | 1.5 / 16-12 | 1J-4021 | 76 | 34 | 23 | 66.7 |
| -40 | 2.1 / 2-12 | -26 | 1.5 / 8-12 | 1J-4026 | 77 | 34 | 24 | 66.7 |
| -40 | 2.1 / 2-12 | -30 | 1.7 / 8-12 | 1J-4030 | 80 | 34 | 28 | 66.7 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1J-4040 | 86 | 34 | 34 | 66.7 |
2. Adaptery hydrauliczne JIC do ORB (pierścień uszczelniający)/1JO
| A | B | Część nr | L | E | F | H1 | ||
| myślnik | JIC | myślnik | ONE | mm | mm | mm | mm | |
| -5 | 5 / 16-24 | -7 | 7 / 16-20 | 1JO-0507 | 29 | 12 | 9 | 14.3 |
| -6 | 2003-8-24 | -6 | 3 / 8-24 | 1JO-0606 | 28 | 12 | 8 | 12.7 |
| -6 | 2003-8-24 | -7 | 7 / 16-20 | 1JO-0607 | 29 | 12 | 9 | 14.3 |
| -7 | 7 / 16-20 | -7 | 7 / 16-20 | 1JO-0707 | 29 | 14 | 9 | 14.3 |
| -7 | 7 / 16-20 | -8 | 1 / 2-20 | 1JO-0708 | 29 | 14 | 9 | 15.9 |
| -7 | 7 / 16-20 | -9 | 9 / 16-18 | 1JO-0709 | 30 | 14 | 10 | 17.5 |
| -7 | 7 / 16-20 | -12 | 3 / 4-16 | 1JO-0712 | 33 | 14 | 11 | 22.2 |
| -7 | 7 / 16-20 | -14 | 7 / 8-14 | 1JO-0714 | 38 | 14 | 13 | 25.4 |
| -7 | 7 / 16-20 | -17 | 1.1 / 16-12 | 1JO-0717 | 42 | 14 | 15 | 31.8 |
| -7 | 7 / 16-20 | -21 | 1.5 / 16-12 | 1JO-0721 | 43 | 14 | 15 | 38.1 |
| -8 | 2001-2-20 | -7 | 7 / 16-20 | 1JO-0807 | 31 | 14 | 9 | 14.3 |
| -8 | 2001-2-20 | -8 | 1 / 2-20 | 1JO-0808 | 29 | 14 | 9 | 15.8 |
| -8 | 2001-2-20 | -9 | 9 / 16-18 | 1JO-0809 | 33 | 14 | 9 | 17.5 |
| -8 | 2001-2-20 | -12 | 3 / 4-16 | 1JO-0812 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -7 | 7 / 16-20 | 1JO-0907 | 29 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -8 | 1 / 2-20 | 1JO-0908 | 30 | 14 | 9 | 17.5 |
| -9 | 9 / 16-18 | -9 | 9 / 16-18 | 1JO-0909 | 30 | 14 | 10 | 17.5 |
| -9 | 9 / 16-18 | -12 | 3 / 4-16 | 1JO-0912 | 33 | 14 | 11 | 22.2 |
| -9 | 9 / 16-18 | -14 | 7 / 8-14 | 1JO-0914 | 37 | 14 | 13 | 25.4 |
| -9 | 9 / 16-18 | -17 | 1.1 / 16-12 | 1JO-0917 | 40 | 14 | 15 | 31.8 |
| -9 | 9 / 16-18 | -21 | 1.5 / 16-12 | 1JO-0921 | 43 | 14 | 15 | 38.1 |
| -12 | 2003-4-16 | -7 | 7 / 16-20 | 1JO-1207 | 34 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -8 | 1 / 2-20 | 1JO-1208 | 38 | 17 | 9 | 22.2 |
| -12 | 2003-4-16 | -9 | 9 / 16-18 | 1JO-1209 | 35 | 17 | 10 | 22.2 |
| -12 | 2003-4-16 | -12 | 3 / 4-16 | 1JO-1212 | 36 | 17 | 11 | 22.2 |
| -12 | 2003-4-16 | -14 | 7 / 8-14 | 1JO-1214 | 40 | 17 | 13 | 25.4 |
| -12 | 2003-4-16 | -17 | 1.1 / 16-12 | 1JO-1217 | 43 | 17 | 15 | 31.8 |
| -12 | 2003-4-16 | -21 | 1.5 / 16-12 | 1JO-1221 | 43 | 17 | 15 | 38.1 |
| -14 | 2007-8-14 | -9 | 9 / 16-18 | 1JO-1409 | 43 | 19 | 9 | 25.4 |
| -14 | 2007-8-14 | -12 | 3 / 4-16 | 1JO-1412 | 39 | 19 | 11 | 25.4 |
| -14 | 2007-8-14 | -14 | 7 / 8-14 | 1JO-1414 | 43 | 19 | 13 | 25.4 |
| -14 | 2007-8-14 | -17 | 1.1 / 16-12 | 1JO-1417 | 46 | 19 | 15 | 31.8 |
| -14 | 2007-8-14 | -21 | 1.5 / 16-12 | 1JO-1421 | 46 | 19 | 15 | 38.1 |
| -14 | 2007-8-14 | -26 | 1.5 / 8-12 | 1JO-1426 | 50 | 19 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -9 | 9 / 16-18 | 1JO-1709 | 47 | 22 | 9 | 31.8 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-16 | 1JO-1712 | 43 | 22 | 11 | 31.8 |
| -17 | 1.1 / 16-12 | -14 | 7 / 8-14 | 1JO-1714 | 45 | 22 | 13 | 31.8 |
| -17 | 1.1 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1717 | 48 | 22 | 15 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1719 | 48 | 22 | 15 | 34.9 |
| -17 | 1.1 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1721 | 48 | 22 | 15 | 38.1 |
| -17 | 1.1 / 16-12 | -26 | 1.5 / 8-12 | 1JO-1726 | 48 | 22 | 15 | 47.6 |
| -17 | 1.1 / 16-12 | -30 | 1.7 / 8-12 | 1JO-1730 | 55 | 22 | 15 | 54 |
| -19 | 1.3 / 16-12 | -17 | 1.1 / 16-12 | 1JO-1917 | 51 | 23 | 15 | 31.8 |
| -19 | 1.3 / 16-12 | -19 | 1.3 / 16-12 | 1JO-1919 | 51 | 23 | 15 | 34.9 |
| -19 | 1.3 / 16-12 | -21 | 1.5 / 16-12 | 1JO-1921 | 51 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-16 | 1JO-2112 | 51 | 23 | 11 | 34.9 |
| -21 | 1.5 / 16-12 | -14 | 7 / 8-14 | 1JO-2114 | 47 | 23 | 13 | 34.9 |
| -21 | 1.5 / 16-12 | -17 | 1.1 / 16-12 | 1JO-2117 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JO-2119 | 49 | 23 | 15 | 34.9 |
| -21 | 1.5 / 16-12 | -21 | 1.5 / 16-12 | 1JO-2121 | 49 | 23 | 15 | 38.1 |
| -21 | 1.5 / 16-12 | -26 | 1.5 / 8-12 | 1JO-2126 | 55 | 23 | 15 | 47.6 |
| -21 | 1.5 / 16-12 | -30 | 1.7 / 8-12 | 1JO-2130 | 56 | 23 | 15 | 54 |
| -26 | 1.5 / 8-12 | -14 | 7 / 8-14 | 1JO-2614 | 57 | 24 | 13 | 42.9 |
| -26 | 1.5 / 8-12 | -17 | 1.1 / 16-12 | 1JO-2617 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -21 | 1.5 / 16-12 | 1JO-2621 | 55 | 24 | 15 | 42.9 |
| -26 | 1.5 / 8-12 | -26 | 1.5 / 8-12 | 1JO-2626 | 55 | 24 | 15 | 47.6 |
| -26 | 1.5 / 8-12 | -30 | 1.7 / 8-12 | 1JO-2630 | 55 | 24 | 15 | 54 |
| -30 | 1.7-8-12 | -26 | 1.5 / 8-12 | 1JO-3026 | 60 | 28 | 15 | 54 |
| -30 | 1.7-8-12 | -30 | 1.7 / 8-12 | 1JO-3030 | 58 | 28 | 15 | 54 |
| -30 | 1.7 / 8-12 | -40 | 2.1 / 2-12 | 1JO-3040 | 64 | 28 | 15 | 69.9 |
| -40 | 2.1 / 2-12 | -40 | 2.1 / 2-12 | 1JO-4040 | 66 | 34 | 15 | 69.9 |
3. Adaptery hydrauliczne JIC do ORFS (uszczelnienie czołowe pierścieniem uszczelniającym typu O)/1JF
| Wątek A | Wątek B | Część nr | L | E | F | H1 | ||
| myślnik | JIC | myślnik | ORFS | mm | mm | mm | mm | |
| -07 | 7 / 16-20 | -09 | 9 / 16-18 | 1JF-0709 | 32 | 14 | 10 | 15.9 |
| -07 | 7 / 16-20 | -11 | 11 / 16-16 | 1JF-0711 | 34 | 14 | 11 | 19.1 |
| -09 | 9 / 16-18 | -11 | 11 / 16-16 | 1JF-0911 | 34 | 14 | 11 | 19.1 |
| -12 | 3 / 4-16 | -11 | 11 / 16-16 | 1JF-1211 | 38 | 17 | 11 | 22.2 |
| -12 | 3 / 4-16 | -13 | 13 / 16-16 | 1JF-1213 | 39 | 17 | 13 | 22.2 |
| -14 | 7 / 8-14 | -13 | 13 / 16-16 | 1JF-1413 | 40 | 19 | 13 | 25.4 |
| -14 | 7 / 8-14 | -16 | 1-14 | 1JF-1416 | 46 | 19 | 16 | 27.0 |
| -17 | 1.1 / 16-12 | -16 | 1-14 | 1JF-1716 | 50 | 22 | 16 | 31.8 |
| -17 | 1.1 / 16-12 | -19 | 1.3 / 16-12 | 1JF-1719 | 52 | 22 | 17 | 31.8 |
| -21 | 1.5 / 16-12 | -19 | 1.3 / 16-12 | 1JF-2119 | 55 | 23 | 17 | 38.1 |
| -21 | 1.5 / 16-12 | -23 | 1.7 / 16-12 | 1JF-2123 | 55 | 23 | 18 | 38.1 |
| -26 | 1.5 / 8-12 | -27 | 1.11 / 16-12 | 1JF-2627 | 58 | 24 | 18 | 44.5 |
4. Adaptery hydrauliczne JIC do kolan NPTF 90 stopni/1JN9
| Wątek A | Wątek B | Część nr | E | F | S1 | |||
| myślnik | JIC | myślnik | NPT | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-27 | 1JN9-0702 | 25 | 21 | 11 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-18 | 1JN9-0704 | 27 | 26 | 14 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-18 | 1JN9-0706 | 30 | 31 | 19 | |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JN9-0708 | 31 | 37 | 22 | |
| -07 | 7 / 16-20 | -12 | 3 / 4-14 | 1JN9-0712 | 33 | 44 | 27 | |
| -08 | 1 / 2-20 | -02 | 1 / 8-27 | 1JN9-0802 | 27 | 24 | 14 | |
| -08 | 1 / 2-20 | -04 | 1 / 4-18 | 1JN9-0804 | 27 | 26 | 14 | |
| -08 | 1 / 2-20 | -06 | 3 / 8-18 | 1JN9-0806 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -02 | 1 / 8-27 | 1JN9-0902 | 27 | 21 | 14 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-18 | 1JN9-0904 | 27 | 26 | 14 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-18 | 1JN9-0906 | 30 | 31 | 19 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JN9-0908 | 32 | 37 | 22 | |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JN9-0912 | 33 | 40 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-18 | 1JN9-1204 | 32 | 29 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-18 | 1JN9-1206 | 32 | 31 | 19 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JN9-1208 | 35 | 37 | 22 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JN9-1212 | 38 | 44 | 27 | |
| -12 | 3 / 4-16 | -16 | 1-11 | 1JN9-1216 | 39 | 50 | 33 | |
| -14 | 7 / 8-14 | -04 | 1 / 4-18 | 1JN9-1404 | 38 | 34 | 22 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-18 | 1JN9-1406 | 38 | 33 | 22 | |
5. Adaptery hydrauliczne JIC do kolan BSPP 45 stopni/1JG4
| A | B | Część nr | E | F | S1 | H | |||
| myślnik | JIC | myślnik | BSPP | mm | mm | mm | mm | ||
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JG4-0702 | 18 | 22 | 11 | 14 | |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JG4-0704 | 22 | 26 | 14 | 19 | |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JG4-0706 | 23 | 33 | 19 | 22 | |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JG4-0904 | 22 | 28 | 14 | 19 | |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JG4-0906 | 23 | 32 | 19 | 22 | |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JG4-0908 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JG4-1204 | 25 | 31 | 19 | 19 | |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JG4-1206 | 25 | 32 | 19 | 22 | |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JG4-1208 | 25 | 36 | 22 | 27 | |
| -12 | 3 / 4-16 | -12 | 3 / 4-12 | 1JG4-1212 | 30 | 37 | 27 | 32 | |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JG4-1406 | 28 | 33 | 22 | 22 | |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JG4-1408 | 28 | 36 | 22 | 27 | |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JG4-1412 | 32 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JG4-1708 | 33 | 37 | 27 | 27 | |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JG4-1712 | 33 | 37 | 27 | 32 | |
| -17 | 1.1 / 16-12 | -16 | 1-11 | 1JG4-1716 | 35 | 44 | 33 | 41 | |
| -21 | 1.5 / 16-12 | -16 | 1-11 | 1JG4-2116 | 42 | 44 | 33 | 41 | |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JG4-2620 | 40 | 47 | 41 | 50 | |
| -30 | 1.7 / 8-12 | -24 | 1.1.2-11 | 1JG4-3024 | 45 | 51 | 48 | 55 | |
6. Adaptery hydrauliczne JIC do kolan BSPT 90 stopni/1JT9
| A | B | Część nr | E | F | S1 | ||
| myślnik | JIC | myślnik | PTSD | mm | mm | mm | |
| -07 | 7 / 16-20 | -02 | 1 / 8-28 | 1JT9-0702 | 25 | 21 | 11 |
| -07 | 7 / 16-20 | -04 | 1 / 4-19 | 1JT9-0704 | 27 | 26 | 14 |
| -07 | 7 / 16-20 | -06 | 3 / 8-19 | 1JT9-0706 | 28 | 28.4 | 19 |
| -07 | 7 / 16-20 | -08 | 1 / 2-14 | 1JT9-0708 | 30 | 36 | 22 |
| -08 | 1 / 2-20 | -02 | 1 / 8-28 | 1JT9-0802 | 27 | 24 | 14 |
| -08 | 1 / 2-20 | -04 | 1 / 4-19 | 1JT9-0804 | 27 | 26 | 14 |
| -08 | 1 / 2-20 | -06 | 3 / 8-19 | 1JT9-0806 | 28 | 28.4 | 19 |
| -09 | 9 / 16-18 | -02 | 1 / 8-28 | 1JT9-0902 | 27 | 24 | 14 |
| -09 | 9 / 16-18 | -04 | 1 / 4-19 | 1JT9-0904 | 27 | 26 | 14 |
| -09 | 9 / 16-18 | -06 | 3 / 8-19 | 1JT9-0906 | 29 | 29.0 | 19 |
| -09 | 9 / 16-18 | -08 | 1 / 2-14 | 1JT9-0908 | 32 | 36 | 22 |
| -09 | 9 / 16-18 | -12 | 3 / 4-14 | 1JT9-0912 | 35 | 44 | 27 |
| -12 | 3 / 4-16 | -04 | 1 / 4-19 | 1JT9-1204 | 32 | 28 | 19 |
| -12 | 3 / 4-16 | -06 | 3 / 8-19 | 1JT9-1206 | 32 | 31 | 19 |
| -12 | 3 / 4-16 | -08 | 1 / 2-14 | 1JT9-1208 | 35 | 36 | 22 |
| -12 | 3 / 4-16 | -12 | 3 / 4-14 | 1JT9-1212 | 38 | 43 | 27 |
| -12 | 3 / 4-16 | -16 | 1-11 | 1JT9-1216 | 43 | 50 | 33 |
| -14 | 7 / 8-14 | -06 | 3 / 8-19 | 1JT9-1406 | 38 | 32 | 22 |
| -14 | 7 / 8-14 | -08 | 1 / 2-14 | 1JT9-1408 | 37 | 36 | 22 |
| -14 | 7 / 8-14 | -12 | 3 / 4-14 | 1JT9-1412 | 41 | 43 | 27 |
| -14 | 7 / 8-14 | -16 | 1-11 | 1JT9-1416 | 45 | 50 | 33 |
| -17 | 1.1 / 16-12 | -08 | 1 / 2-14 | 1JT9-1708 | 44 | 40 | 27 |
| -17 | 1.1 / 16-12 | -12 | 3 / 4-14 | 1JT9-1712 | 44 | 43 | 27 |
| -17 | 1.1 / 16-12 | -16 | 1-11 | 1JT9-1716 | 48 | 50 | 33 |
| -17 | 1.1 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-1720 | 49 | 57 | 41 |
| -21 | 1.5 / 16-12 | -12 | 3 / 4-14 | 1JT9-2112 | 49 | 48 | 33 |
| -21 | 1.5 / 16-12 | -16 | 1-11 | 1JT9-2116 | 49 | 50 | 33 |
| -21 | 1.5 / 16-12 | -20 | 1.1 / 4-11 | 1JT9-2120 | 51 | 57 | 41 |
| -26 | 1.5 / 8-12 | -16 | 1-11 | 1JT9-2616 | 56 | 57 | 41 |
| -26 | 1.5 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-2620 | 53 | 57 | 41 |
| -26 | 1.5 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-2624 | 56 | 63 | 48 |
| -30 | 1.7 / 8-12 | -20 | 1.1 / 4-11 | 1JT9-3020 | 63 | 63 | 48 |
| -30 | 1.7 / 8-12 | -24 | 1.1 / 2-11 | 1JT9-3024 | 63 | 63 | 48 |
| -40 | 2.1 / 2-12 | -32 | 2-11 | 1JT9-4032 | 75 | 67 | 63 |
7. Adaptery hydrauliczne JIC do metrycznych/1JM
| Wątek A | Wątek B | Część nr | L | E | F | H1 | ||
| myślnik | JIC | myślnik | metryczny | mm | mm | mm | mm | |
| -7 | 7 / 16-20 | -6 | 6x1.0 | 1JM-0706 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -8 | 8x1.0 | 1JM-0708 | 28 | 14 | 7 | 12 |
| -7 | 7 / 16-20 | -10 | 10x1.0 | 1JM-0710ES | 30 | 14 | 8 | 14 |
| -7 | 7 / 16-20 | -12 | 12x1.5 | 1JM-0712ES | 36 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -14 | 14x1.5 | 1JM-0714ES | 39 | 14 | 12 | 17 |
| -7 | 7 / 16-20 | -16 | 16x1.5 | 1JM-0716ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -10 | 10x1.0 | 1JM-0910ES | 31 | 14 | 8 | 17 |
| -9 | 9 / 16-18 | -12 | 12x1.5 | 1JM-0912ES | 36 | 14 | 12 | 17 |
| -9 | 9 / 16-18 | -14 | 14x1.5 | 1JM-0914ES | 36 | 14 | 12 | 19 |
| -9 | 9 / 16-18 | -16 | 16x1.5 | 1JM-0916ES | 36 | 14 | 12 | 22 |
| -9 | 9 / 16-18 | -18 | 18x1.5 | 1JM-0918ES | 37 | 14 | 12 | 24 |
| -9 | 9 / 16-18 | -20 | 20x1.5 | 1JM-0920ES | 40 | 14 | 14 | 27 |
| -9 | 9 / 16-18 | -22 | 22x1.5 | 1JM-0922ES | 40 | 14 | 14 | 27 |
| -12 | 2003-4-16 | -12 | 12x1.5 | 1JM-1212ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -14 | 14x1.5 | 1JM-1214ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -16 | 16x1.5 | 1JM-1216ES | 39 | 17 | 12 | 22 |
| -12 | 2003-4-16 | -18 | 18x1.5 | 1JM-1218ES | 39 | 17 | 12 | 24 |
| -12 | 2003-4-16 | -20 | 20x1.5 | 1JM-1220ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -22 | 22x1.5 | 1JM-1222ES | 43 | 17 | 14 | 27 |
| -12 | 2003-4-16 | -26 | 26x1.5 | 1JM-1226ES | 47 | 17 | 16 | 32 |
| -14 | 2007-8-14 | -14 | 14x1.5 | 1JM-1414ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -16 | 16x1.5 | 1JM-1416ES | 41 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -18 | 18x1.5 | 1JM-1418ES | 42 | 19 | 12 | 24 |
| -14 | 2007-8-14 | -20 | 20x1.5 | 1JM-1420ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -22 | 22x1.5 | 1JM-1422ES | 45 | 19 | 14 | 27 |
| -14 | 2007-8-14 | -26 | 26x1.5 | 1JM-1426ES | 49 | 19 | 16 | 32 |
| -17 | 1.1 / 16-12 | -18 | 18x1.5 | 1JM-1718ES | 45 | 22 | 12 | 30 |
| -17 | 1.1 / 16-12 | -20 | 20x1.5 | 1JM-1720ES | 46 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -22 | 22x1.5 | 1JM-1722ES | 49 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -24 | 24x1.5 | 1JM-1724 | 48 | 22 | 14 | 30 |
| -17 | 1.1 / 16-12 | -26 | 26x1.5 | 1JM-1726ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727 | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -27 | 27x2.0 | 1JM-1727ES | 52 | 22 | 16 | 32 |
| -17 | 1.1 / 16-12 | -28 | 28x1.5 | 1JM-1728 | 52 | 23 | 16 | 32 |
| -17 | 1.1 / 16-12 | -30 | 30x2.0 | 1JM-1730 | 52 | 22 | 16 | 36 |
| -21 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-1733ES | 52 | 22 | 16 | 38 |
| -21 | 1.5 / 16-12 | -26 | 26x1.5 | 1JM-2126ES | 53 | 23 | 18 | 36 |
| -21 | 1.5 / 16-12 | -27 | 27x2.0 | 1JM-2127ES | 53 | 23 | 20 | 36 |
| -26 | 1.5 / 16-12 | -33 | 33x2.0 | 1JM-2133ES | 55 | 23 | 18 | 41 |
| -21 | 1.5 / 16-12 | -42 | 42x2.0 | 1JM-2142ES | 57 | 23 | 20 | 50 |
| -26 | 1.5 / 8-12 | -42 | 42x2.0 | 1JM-2642ES | 58 | 24 | 20 | 50 |
| -30 | 1.7 / 8-12 | -48 | 48x2.0 | 1JM-3048ES | 65 | 28 | 22 | 55 |
Szczegóły
Złączki hydrauliczne JIC zyskały popularność w branży ze względu na swoje liczne zalety. Zapewniają one bezpieczne i niezawodne połączenie, niezbędne w układach hydraulicznych. Oto kilka kluczowych korzyści płynących ze stosowania złączek hydraulicznych JIC:
1. Szczelne połączenie: złączki JIC zapewniają szczelne uszczelnienie, które zapobiega przeciekom, gwarantując wydajną pracę układów hydraulicznych.
2. Łatwy montaż: złączki JIC są szybkie i łatwe w montażu, co pozwala zaoszczędzić czas i koszty robocizny.
3. Trwałość i długa żywotność: Te okucia wykonane są z wysokiej jakości materiałów, dzięki czemu są trwałe i odporne na zużycie. Zapewnia to długą żywotność okuć.
4. Wszechstronność: Złączki JIC są kompatybilne z szeroką gamą układów hydraulicznych i urządzeń, co czyni je uniwersalnym wyborem do różnych zastosowań.
5. Wysokie ciśnienie robocze: Złączki JIC wytrzymują wysokie ciśnienia, dzięki czemu nadają się do stosowania w wymagających zastosowaniach hydraulicznych.
6. Standaryzowana konstrukcja: Złączki JIC są zbudowane zgodnie ze standaryzowaną konstrukcją, która umożliwia wymienność i kompatybilność z innymi złączkami, zmniejszając ryzyko wystąpienia błędów podczas montażu.
Podsumowując, złączki hydrauliczne JIC oferują liczne zalety, które czynią je popularnym wyborem do układów hydraulicznych. Szczelne połączenia, łatwy montaż, trwałość, wszechstronność, wysokie ciśnienie robocze i znormalizowana konstrukcja sprawiają, że są idealnym wyborem do różnych zastosowań.
Dostarczanie elementów hydraulicznych JIC do miast w
